Austin Cryogenics Cryopump Temperature Indicator Controller Model M1

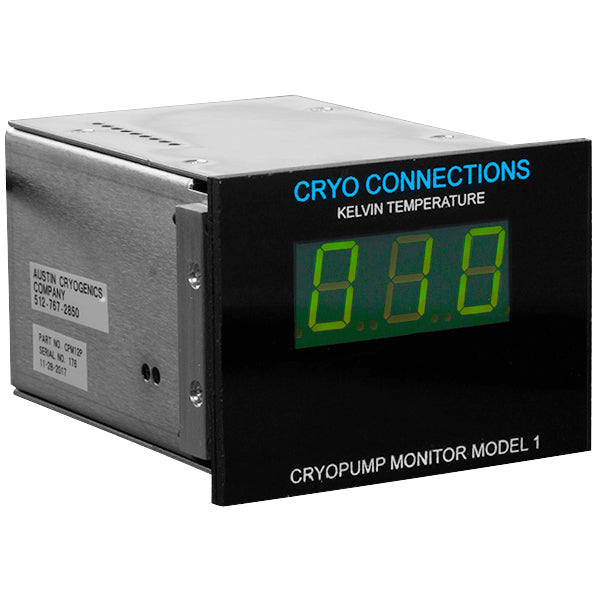

CRYO PUMP MONITOR MODEL 1

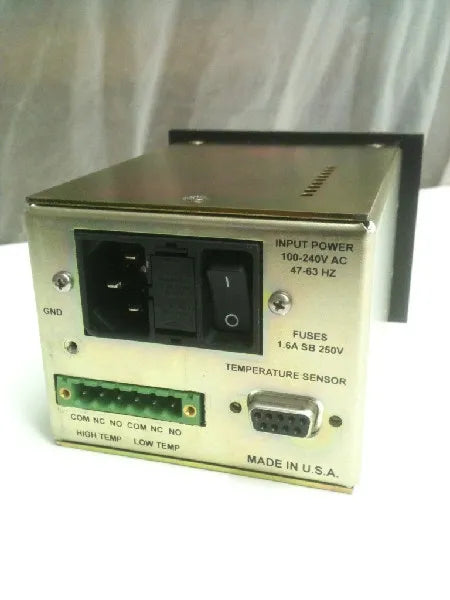

The Cryo Pump Monitor Model 1 reads the temperature in Kelvin. The DB-9 connector has two output signals, the diode signal and a analog voltage output signal 0.100 DC VOLT to 3.20 DC VOLTS (0.100 VDC = 10 degree Kelvin and 3.20 VDC = 320 degree Kelvin) that can be use with a PLC ( or computer, etc. )  See DB-9 pin out. You can add a two conductor shield cable for the analog voltage output (see DB-9 pin out).

Cryo Pump Monitor Model 1 features:

1.) Input power range is 100-240 Volts AC at 47-63Hz.

2.) Meter reads 10 to 320 degree Kelvin.

3.) Three LED digit 0.8 inch meter display long distance easy reading.

4.) Front panel is 3.00 inches X 4.00 the chassis is 2.83" high X 3.43" wide X 5.03" long.

5.) You can order the Model 1 as a panel mount or desk top with rubber feet.

6.) You select the diode cable length. If you want we can put an extra shielded cable for the Analog Voltage Output signal (we need the length and type of terminals or connector you want at the other end of this cable).

7.) For a panel mount unit cut 2.87" high by 3.47" wide on your panel.
