Austin Cryogenics Cryopump Temperature Indicator Controller Model M2

The MODEL 2 has two relays that are control by selecting the temperature set points you want to interlock your system. There is a low temperature and a high temperature set point. To see the temperature setting of the high or low set points press and hold the red or blue button. To set the temperature set points you press and hold the red (high temperature) or blue (low temperature) button on the front panel and adjust the pot on the side to read your temperature set point. Note when the set point is reached then the LED's on the button turn on. The DB-9 connector has two output signals, the diode signal and an analog voltage output signal. The analog voltage output signal is 0.100 DC VOLT to 3.20 DC Volts (0.100 VDC = 10 degree Kelvin and 3.20 VDC = 320 degree Kelvin) that can be use with a PLC or computer, etc.  You can add a two conductor shield cable for the analog voltage output (see DB-9 pin out).

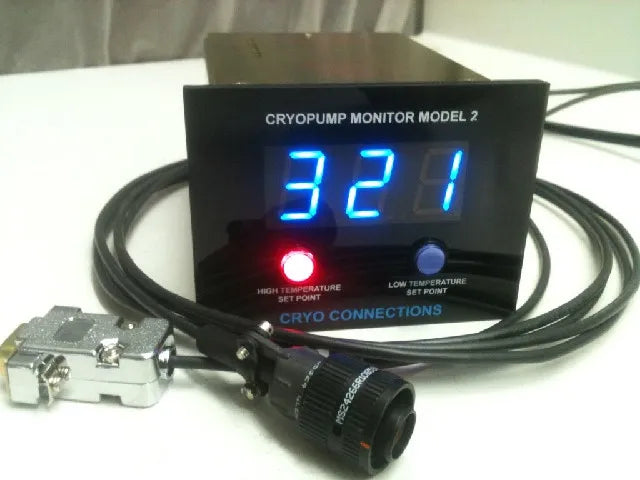

Cryo Pump Monitor Model 2 features

1.) Input power range is 100-240 Volts AC at 47-63Hz

2.) Meter reads 10 to 320 degree Kelvin.

3.) Three LED digit 0.8 inch meter display long distance easy reading.

4.) Two adjustable temperature set points with two relays for interlocking your system. Low set point from 11 to 110 degree Kelvin and the high set point from 112 to 308 degree Kelvin.

5.) Front panel is 3.00 inches X 4.00 the chassis is 2.83" high X 3.43" wide X 5.03" long.

6.) You can order the Model 2 as a panel mount or desk top with rubber feet.

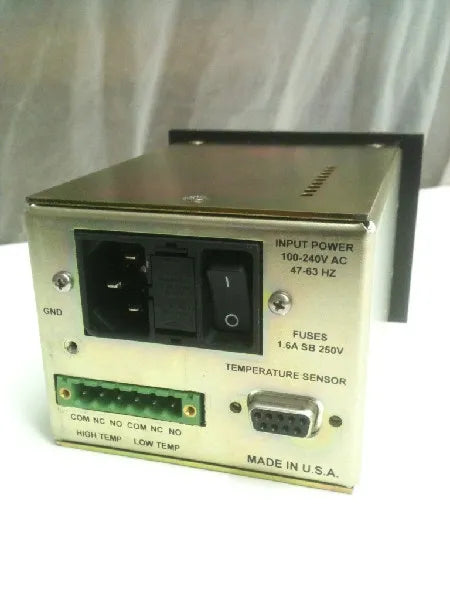

7.) You select the diode cable length. If you want we can put an extra shielded cable for the Analog Voltage Output      signal but we need the length and type of terminals or connector you want at the other end of this cable.

8.) For a panel mount unit cut 2.87" high by 3.47" wide on your panel.
