Austin Cryogenics Company

Cryopump Repair Kit CT-400/500 PN:100153-3

Cryopump Repair Kit CT-400/500 PN:100153-3

Regular price $460.00 USD
Regular price Sale price $460.00 USD
Sale Sold out

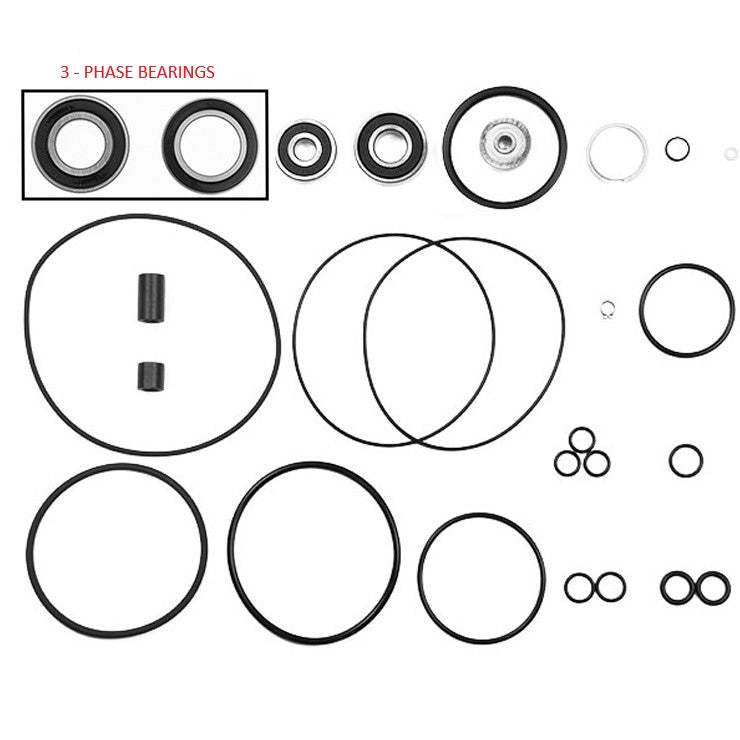

Standard Complete Repair Kit (Helium Side)

CT-400/500 3PH Bearing


Condition: New
Part Number: 100153-3

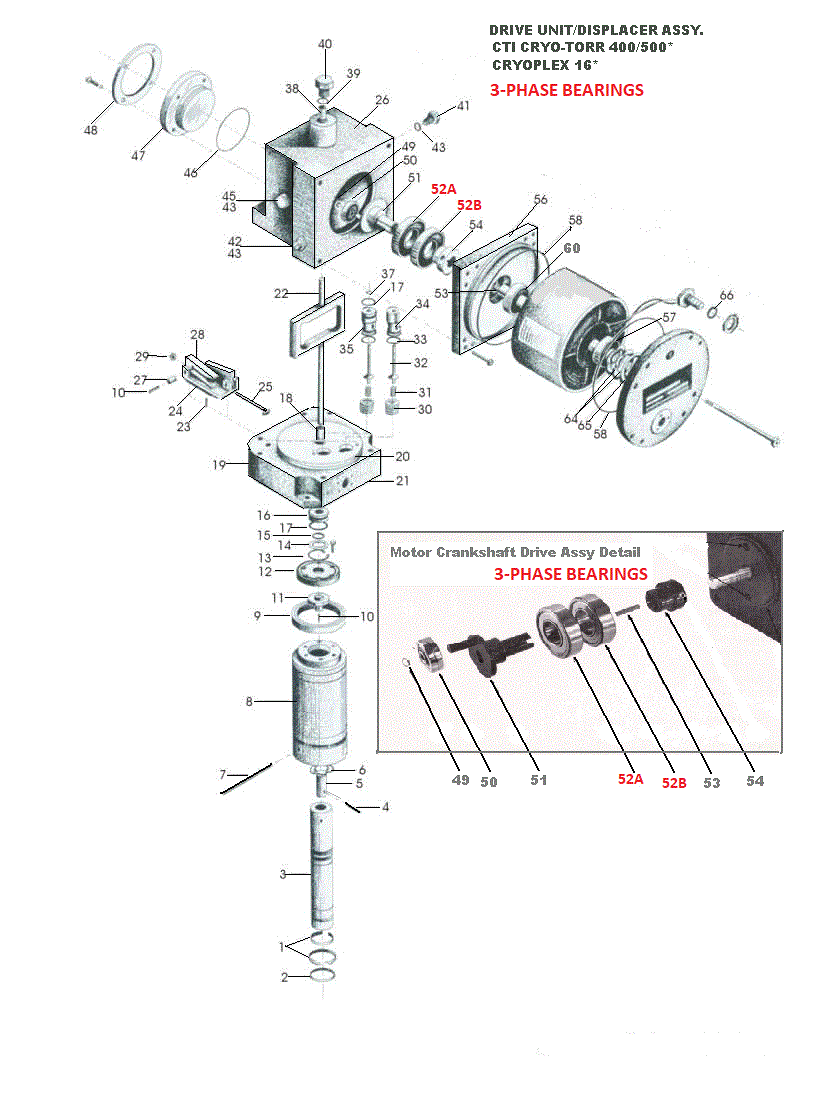

Item

Order P/N

Equivalent           CTI P/N

Equivalent P/N

Description

Qty/Pump

1

100098

3592009

4060-0011

Seal, No. 2 Displacer, CT-8

9

100095

8033109

4060-0010

Seal, No. 1 Displacer, CT-8

15

100094

3592389

4060-0014

Kap-Seal, Gland, CT-8/10

17

410111

58-03-10

2-111B

O-Ring, Yoke Gland

2

18

300017

51-03-43

1660-0006

Bushing, CT-8/10

20

410234

58-03-35

2-234B

O-Ring, Crankcase, CT-8/10

21

410140

580322

2-140B

O-Ring, Vessel

33

410013

58-04-52

2-013B

O-Ring, Valve

37

300018

3588079

4060-0015

Seal, Inlet Valve

38

300016



1660-0007

Bushing

39

410014

58-14-10

2-014B

O-Ring, Plug

43

410012

58-04-60

2-012B

O-Ring

49

400059

56-02-15

3850-0096

Retaining Ring

50

400009

3543017

1600-0043

Drive Bearing, CT-8/10

52A

400010A





Valve Bearing, Inner

1

52B

410010B





Valve Bearing, Outer

56

410139

58-04-57

2-139B

O-Ring, CT-8/10

57

400011

3543017

1600-0042

Motor Bearing, CT-8/10

2

58

410044

58-04-95

2-044B

O-Ring, Motor, CT-8/10

2
