Cryopump Repair Kit, Helium Side, CT-8/8F PN:100151
Cryopump Repair Kit, Helium Side, CT-8/8F PN:100151
Regular price
$420.00 USD
Regular price
Sale price
$420.00 USD
Unit price
per
Couldn't load pickup availability
Standard Complete Repair Kit (Helium Side)
CT-8/8F, 1PH Bearing
Condition: New
Part Number: 100151

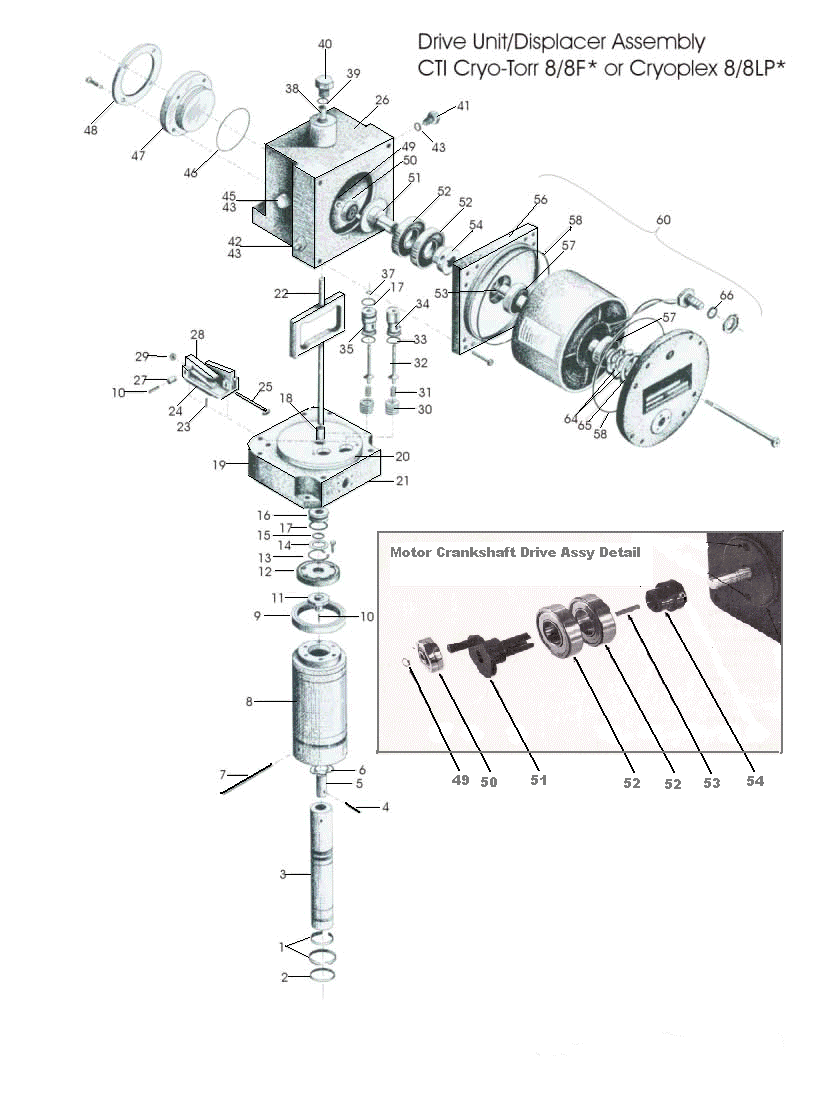

| Item |
Order P/N |
Description | Qty/Pump |
| 1 | 100098 |
Seal, No. 2 Displacer, CT-8 | 1 |
| 9 | 100095 | Seal, No. 1 Displacer, CT-8 | 1 |
| 15 | 100094 | Kap-Seal, Gland, CT-8 | 1 |
| 17 | 410111 | O-Ring, Gland, CT-8 | 2 |
| 18 | 300017 | Bushing, All Models, New Design | 1 |
| 20 | 410234 | O-Ring, Crankcase, CT-8 | 1 |
| 21 | 410140 | O-Ring, Vessel |
1 |
| 33 | 410013 | O-Ring, Valve | 2 |
| 37 | 300018 | Seal, Inlet Valve | 1 |
| 38 | 300016 | Bushing, All Models, New Design | 1 |
| 39 | 410014 | Seal, Inlet Valve | 1 |
| 43 | 410012 | O-Ring, RV, Guide Pin & Plug | 3 |
| 46 | 410129 | O-Ring, Sight Glass | 1 |
| 49 | 400059 | Retaining Ring | 1 |
| 50 | 400009 | Drive Bearing | 1 |
| 52 | 400010 | Valve Bearing |
2 |
| 56 | 410139 | O-Ring | 1 |
| 57 | 400011 | Motor Bearings |
2 |
| 58 | 410044 | O-Ring, Motor Plates |
2 |
